Moon Phaser pedal build (with video)

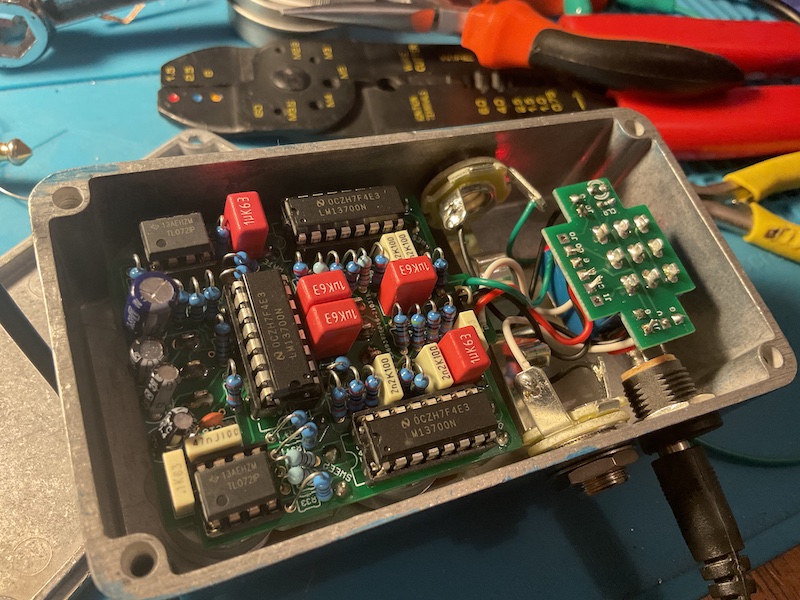

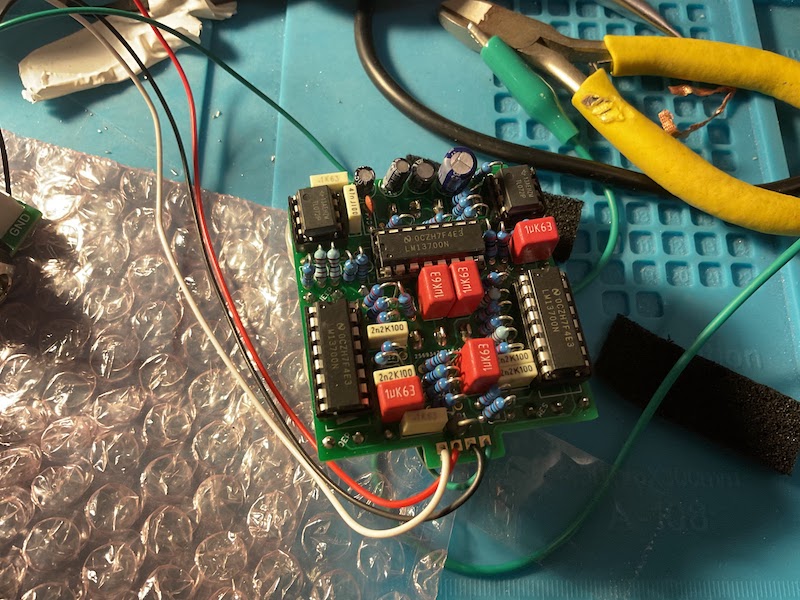

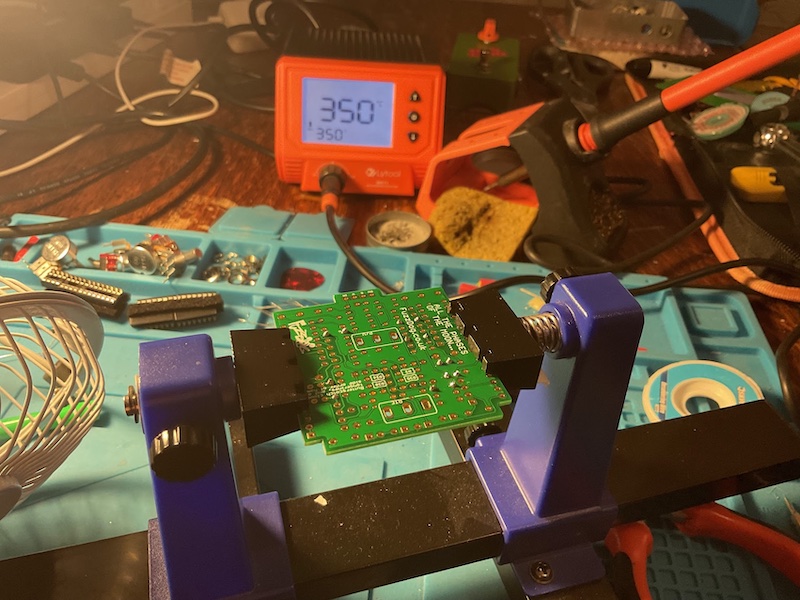

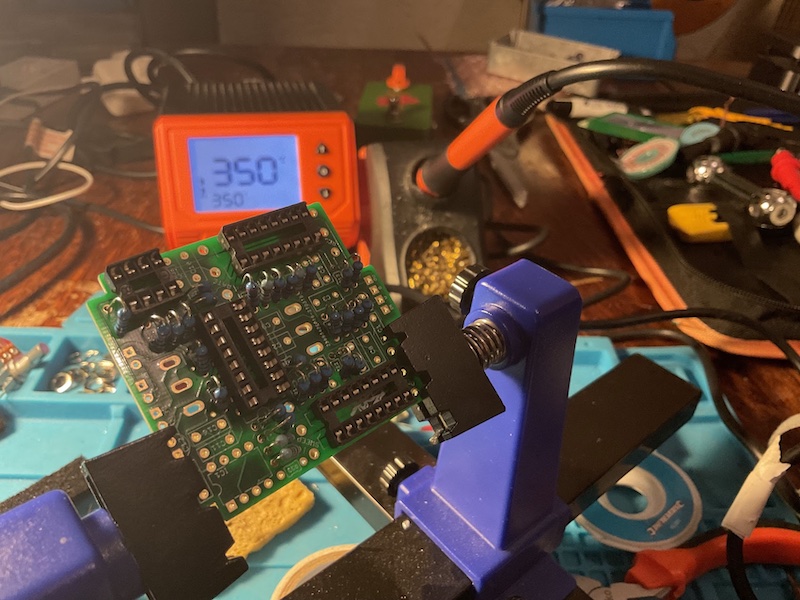

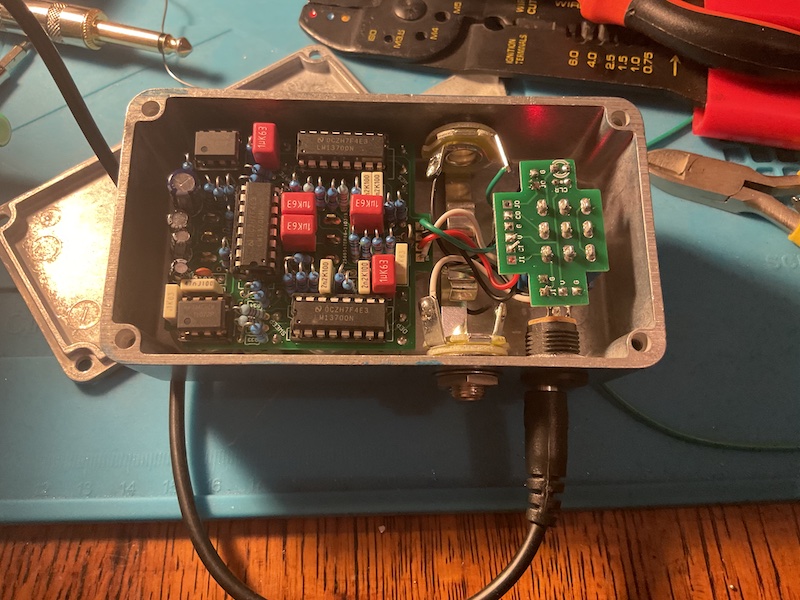

It took me around 3 hours to build the main PCB and then another 45 minutes or so to assemble in the case, which I spray painted blue.

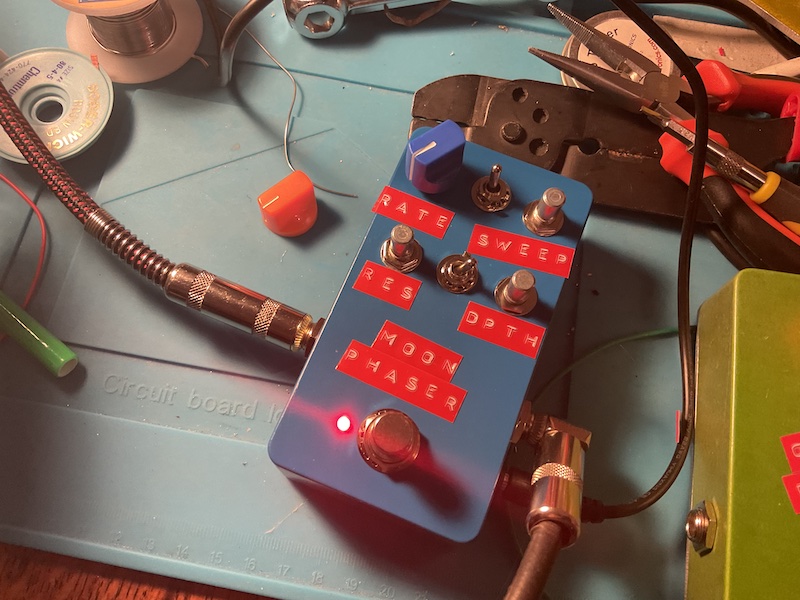

This pedal is a very versatile phaser, particularly as it supports fast and slow modes, “cocked wah” mode, a “vibe” mode that completely removes the nonphased signal, as well as having 4 adjustable parameters - rate, resonance, sweep and depth (which is volume in “vibe” mode).

A very satisfying pedal build, and a pedal I hope to use a lot with my synthesisers and drum machines in my Shinbones Man music!
