DC Power Coupler for 3 5mm Barrel Jack - Gav Tries To Build (with video)

By Gavin Davies

Where I build a DC power coupler for a very unusual adapter.

My friend Richard has a camera that has a curious method of powering. The camera has a USB Mini jack but takes 3 volts, not the standard 5 that USB outputs.

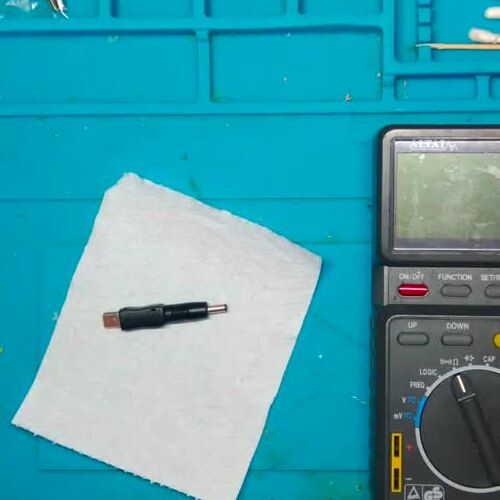

Richard presented me with an adapter that has a micro USB connector on the left, and a barrel jack that is 8mm long and 3.5mm wide with an inner size of 1.35mm. This is a standard size barrel jack, albeit not a common one.

The problem to solve is inverting the barrel jack so that Richard can connect his power adapter, which presumably also has a 3.5mm x 1.35mm DC barrel jack.

It is my belief that a DC Power Coupler will solve this (although may not be the optimal solution; I’d have to know more about the problem). I was unable to source a prebuilt unit so I elected to build one.

Risks: It is not clear to me why the camera is designed this way. I’d like to ask a few questions including the camera model, whether this is factory, why they didn’t step down the voltage within the camera, et cetera. It also feels like with enough force I could pull apart the unit Richard presented me with, but I don’t want to risk destroying it. However, I didn’t have Richard’s contact details so I elected to continue with the assumptions I have stated in the brief. A risk of building a DC coupling is accidentally inverting polarity and damaging the camera. I have designed the coupler to avoid this.

Bill of materials:

  • 2 x PCB mount 1.35mm x 3.5mm female DC barrel sockets
  • 1 x heatshrink tubing
  • 1 x short wire
  • Solder

Testing: I metered the connections, which seem good. I get continuity through the sleeve to the ground pin of the USB connector, and from the center pin to the hot pin of the USB connector. All looked good.
